Specifications Of Quick Release Coupling

Atauff Hydraulic Store is one of the Quick Release Coupling manufacturers, suppliers & exporters in India, spain, UK, USA, Canada, Egypt, Iran, Japan, Malaysia, Nepal, Oman.

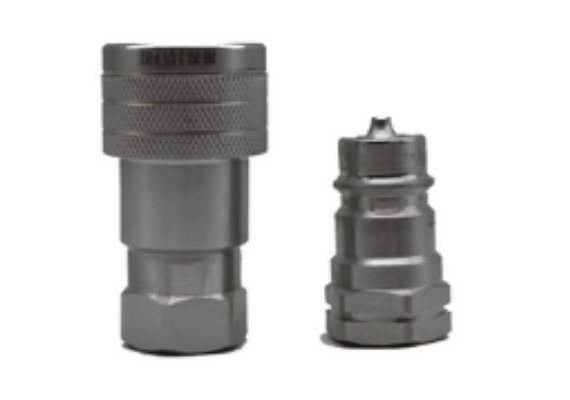

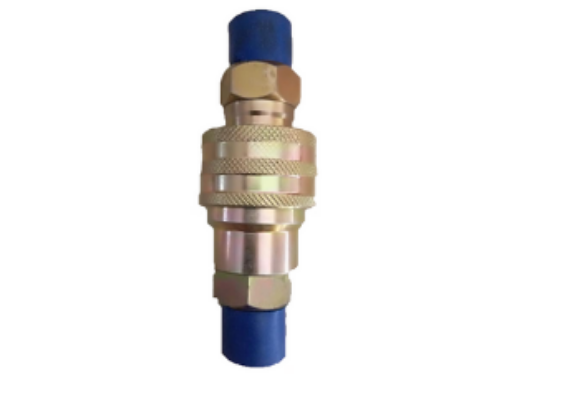

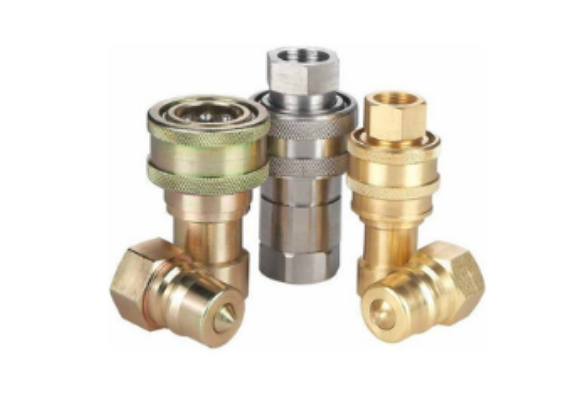

High-quality quick-action coupling made of steel, stainless steel, brass or plastic for practically every application contingency. Very robust, rapid and secure coupling of practically all fluid media. Special solutions for your application needs can also be implemented upon request.
1. Size : 1/4" to 3”
2. Type : Single check, Double check
3. End Connections : NPT / BSP / Hose
4. Material : SS 304 / SS 316 / SS 316L / CS
5. Seat : PTFE
Maximum Working Pressure: 10,000 PSI

Variants

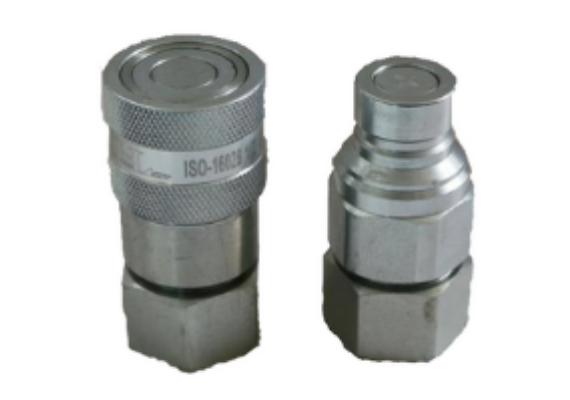

flat-sealing (leakage-free), cone-sealing or ball-sealing
with or without check valve
Plug-in or screw coupling
Bulkhead, pipe, hose or block integration
optional with dust cap, dust plug
optional with additional pressure relief (coupling under residual pressure)
Materials available for shipment
Galvanised steel / zinc-nickel
Stainless steel 1.4571
Brass
Plastic
Choice of seals made of:
NBR
FKM (Viton)
EPDM
